The PROTIMETER Aquant detects moisture below the surface of common construction materials by radio frequency sensing.

No contact probes are required with this contactless measuring system.

The Aquant indicates the relative dampness of differing areas on a 0 -999 scale.

✔ In Stock


Buy Now

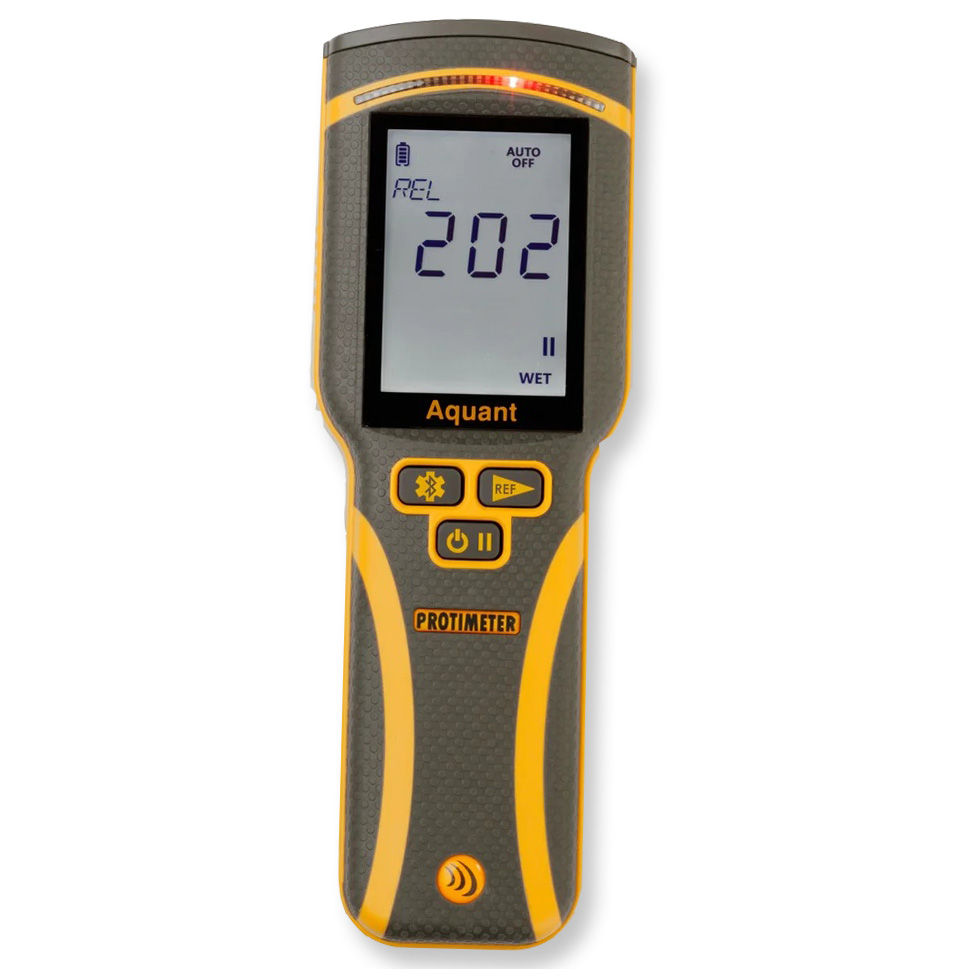

PROTIMETER Aquant - Product Overview


The PROTIMETER Aquant is used to assess and monitor the relative moisture level of building materials including plaster, drywall, masonry, concrete and fiberglass (GRP). It is ideal for checking the relative moisture condition of building elements such as solid walls and floors prior to more rigorous and time-consuming investigative procedures that may be required. The Aquant can be used to detect the presence of moisture behind floor and wall coverings such as ceramic tile and vinyl floor coverings. It can also be used for surveying GRP boat hulls for the early detection of damp spots that could lead to blistering caused by osmosis.

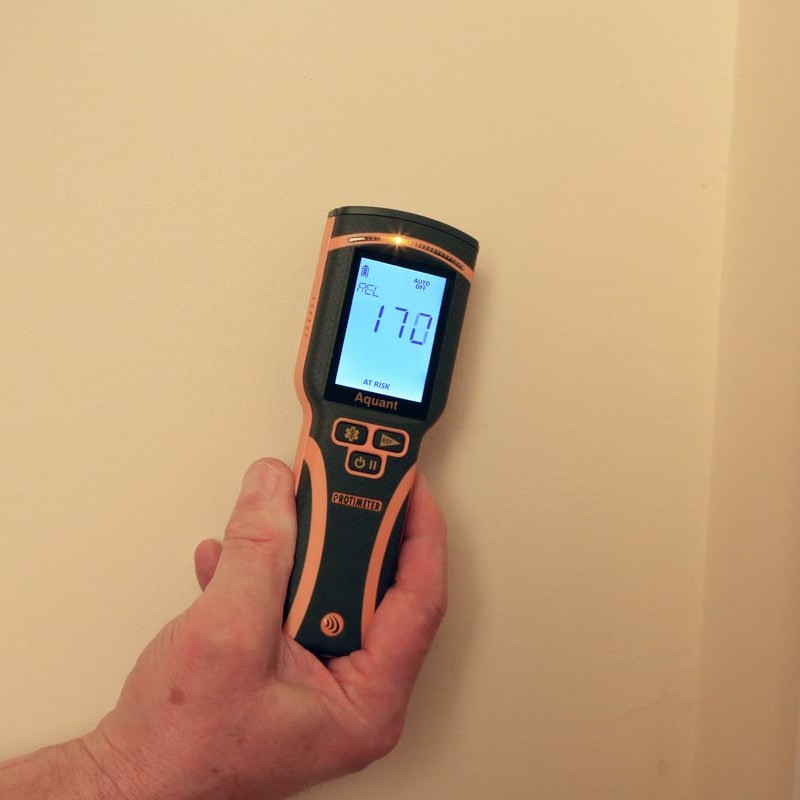

The Aquant has a digital display and a color-coded LED scale. The display shows the relative moisture level of the material under investigation on a scale of 0-999 and the color coded LED scale indicates the material’s moisture condition. To use, the Aquant is simply held against the surface of the material under investigation. The relative moisture level is measured by radio frequency to a nominal depth of 10-20mm. There are no needles to mark the surface and the Aquant is not adversely affected by moisture.

  • Range 0 –999 Relative
  • Display 1— Digital LCD
  • Display 2— 60 LED’s
  • Hold Reading Feature
  • Depth of measurement—Up to 19mm
  • Not adversely affected by surface moisture such as condensation

The PROTIMETER Aquant is supplied with:

  • Pouch with belt loop.
  • Battery

Warranty: 24 months on mechanical or manufacturing defects.

  • Check below the surface

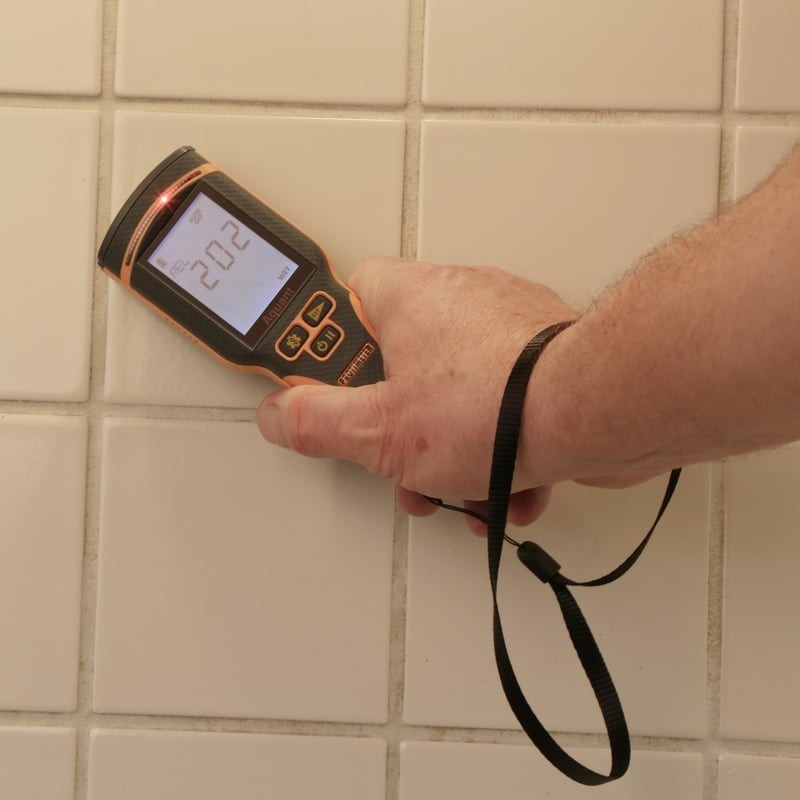

    The PROTIMETER Aquant will detect moisture behind impervious surfaces such as ceramic tiles, GRP and floor vinyl.

  • Solid Floors

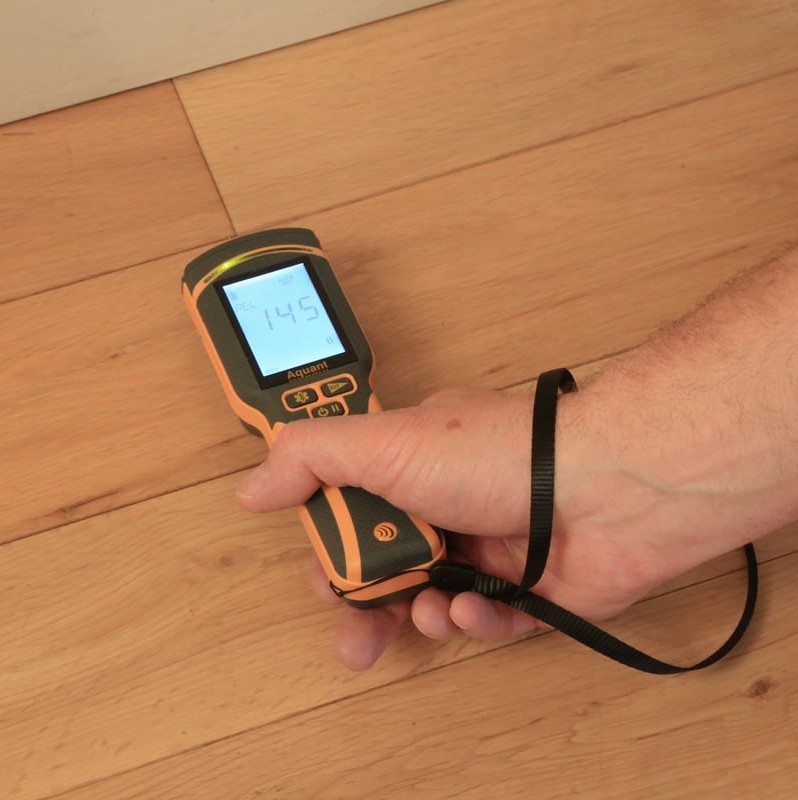

    The Aquant can be used for comparative moisture content assessment of solid floors

PROTIMETER Aquant - Technical Data

Measurement Range 0 to 999 (relative)
Display 1 Digital LCD
Display 2 60 LEDs Green (dry), Yellow (at risk), Red (Wet)
Depth of measurement Up to 19mm
Battery 1 x 9V Type PP3
Weight (with Battery) 100g
Dimensions 175 x 30 x 48m
