Leica DISTO X6 System Kit

Description

The Leica DISTO™ X6 is the latest DISTO product with 3D measuring capability, with an impressive measuring range of up to 250m, and millimetre accuracy.

The DISTO X6 has a digital target viewfinder which enables long distance measuring out in daylight when it is impossible to physically see the laser beam spot with the naked eye. The touch screen display and alternative measure button on the side of the instrument make the device even easier to use.

The X6 System kit comprises a Tripod and DST360-X mounting bracket, for full 3D functionality.

A range of Leica DISTO measuring apps are available, from the free sketch app to the more advanced plan apps. Alternatively, all measurements, along with an image of the measurement point, can be stored and downloaded via the USB-C interface as a 2D or 3D dxf. file for further CAD work; up  to 1000 measurements with images can be stored.

Standard DISTO X6 Measuring Functions:

Standard Distance Measurement

Minimum and Maximum recorded

Angle of laser incline

Remote height measurement (e.g. height of roof ridge) calculated automatically from distance and laser slope angle.

Area and volumes

Area of Triangle

Room corner angle

Stake-out of regular dimension

Measure-in-picture

Extra Functions with DISTO X6 System Kit

Simple Point-to-Point measurement between any two points measured from a single station

Full Point-to-Point measurement between any two points measured from a single station with additional data including difference in point heights, slope angle between points, true horizontal distance between points if they are at different heights.

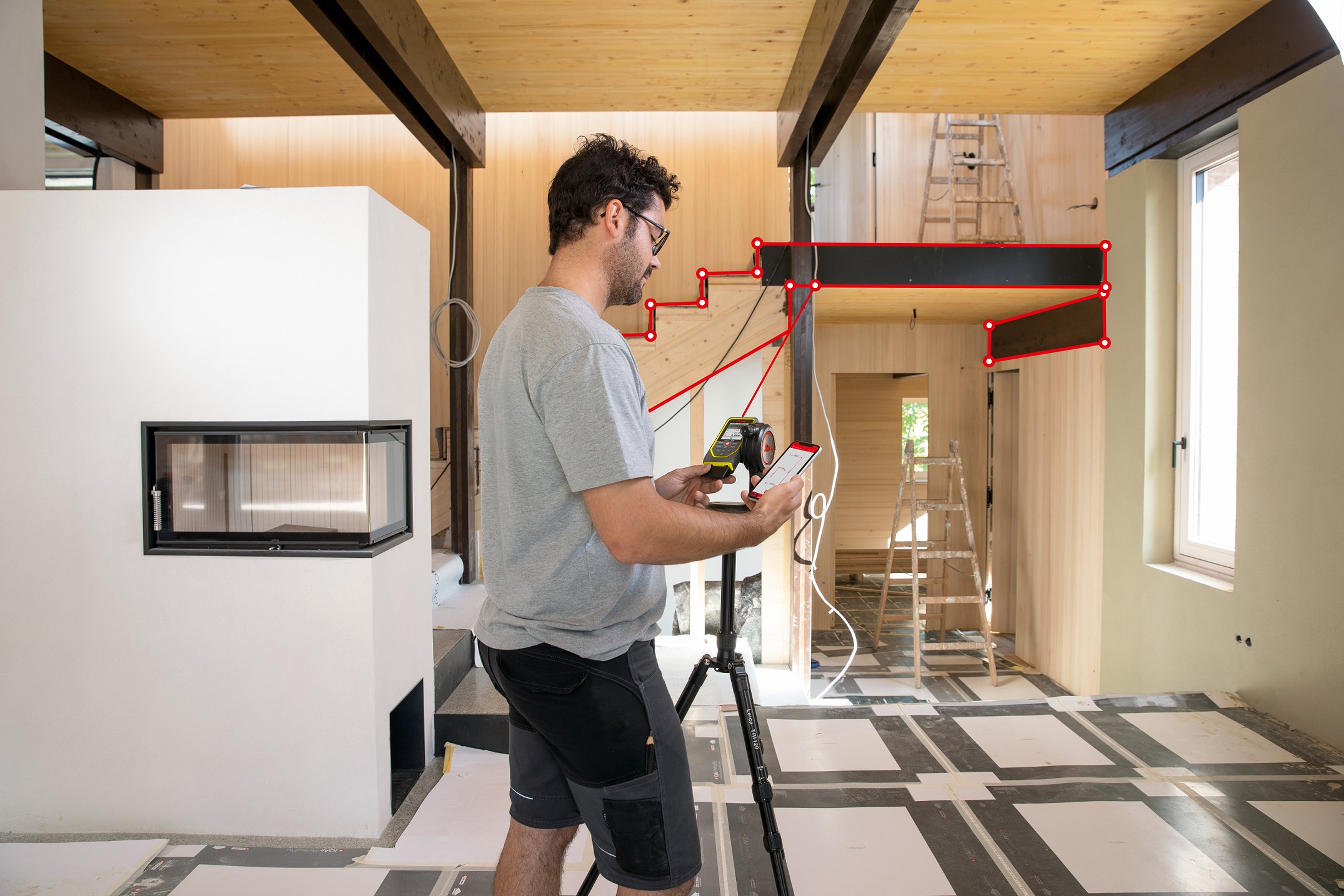

Full 3D room or building surveys with up to 300 points (images of each point also stored)
