Leica Lino L2P5G

The new Leica LINO L2P5 multi-point green-beam laser level.

  • Intense green-beam horizontal and vertical crossline lasers.
  • 4 point lasers for setting out square and plumb
  • Supplied with TWIST 250 mounting bracket
  • UAL 130 Adjustable Height Wall Mount
  • Alkaline and rechargeable battery packs

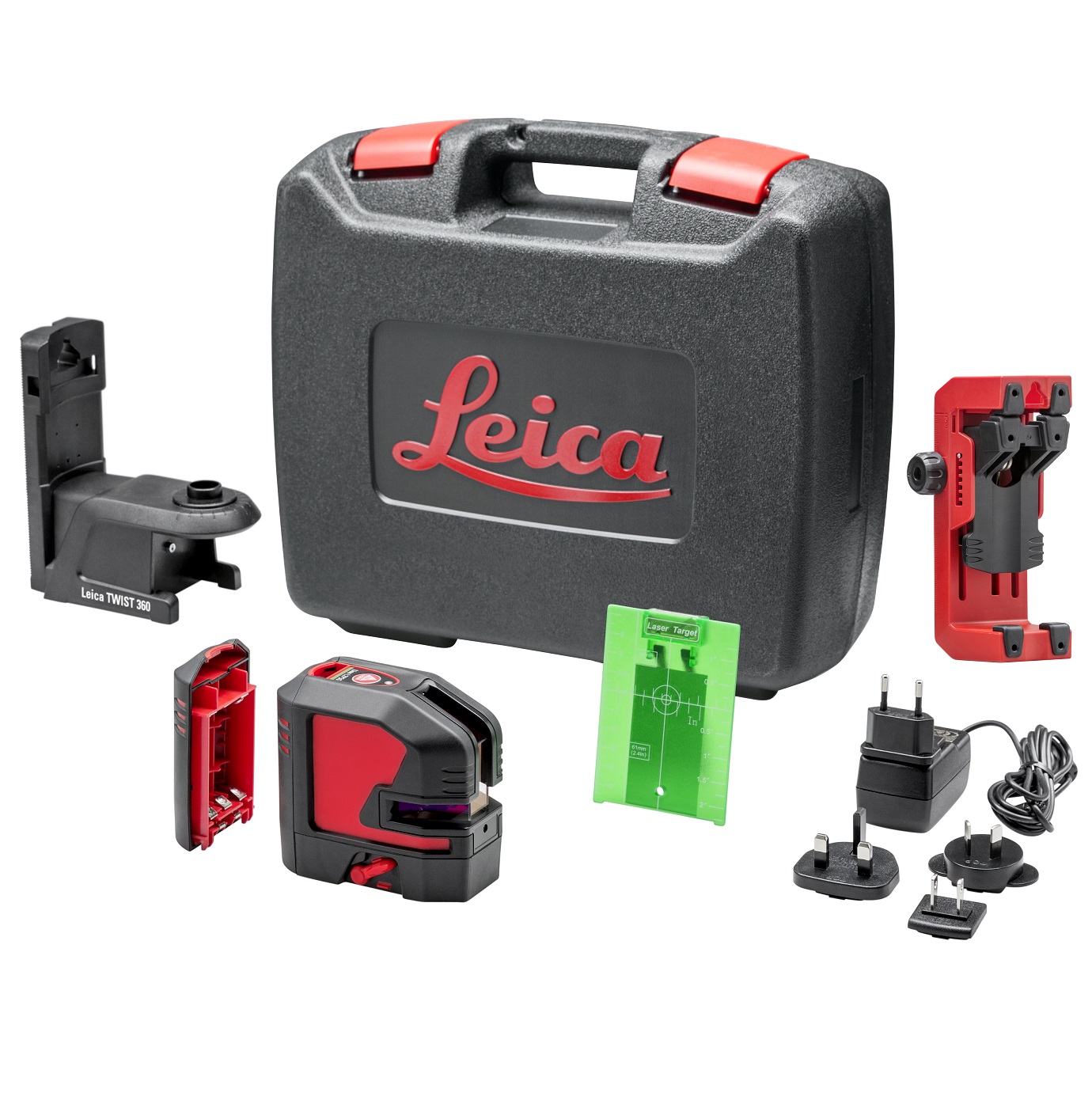

  • Supplied in hard carrying case with mounting brackets, batteries and charger

Product No.864435


In stock


In stock



The new Leica LINO L2P5G is a versatile multi-beam point and line green-beam laser level.

Two bright line lasers project a vertical and a horizontal line onto the wall, floor and ceiling.

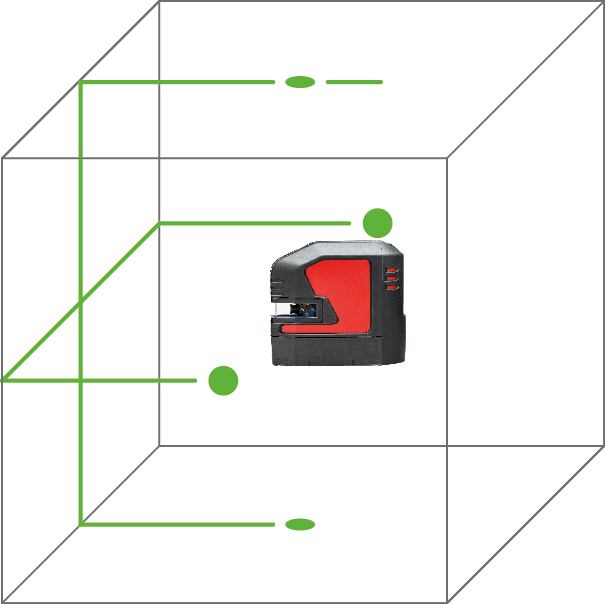

The 4 point lasers project a plumb-up beam, a plumb down beam, and left and right level beams at 90° to the vertical plane line laser.

The Leica LINO L2P5G is thus a very useful tool for a whole range of internal levelling and setting out applications.

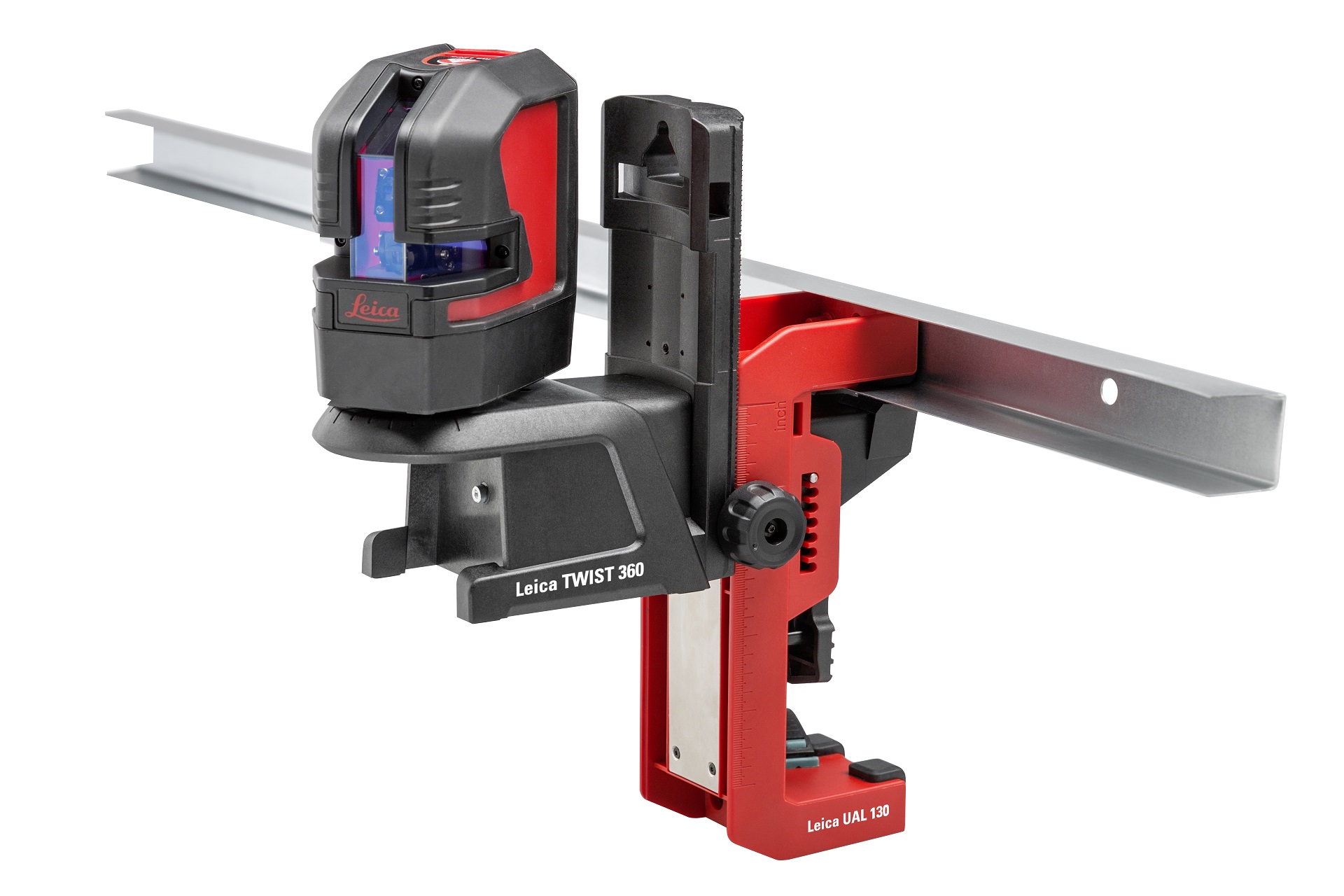

The L2P5G can be magnetically attached to the TWIST 360 bracket, which in turn can be attached to the UAL 130 universal mounting bracket.



Leica LINO Mounting Brackets

The LINO laser level magnetically attaches to the Leica TWIST 250 mounting bracket. The Twist 250 will magnetically attach to a steel channel or column, or will attach to the Leica UAL 130 adjustable wall mounting bracket. The UAL 130 bracket may be clamped to a ceiling edge trim, and the height of the laser can be finely adjusted with the thumb turn knob.



Optional Laser receiver for outdoor operation.

When working outdoors, or in bright light, it can be difficult to see the laser line as the distance increases.

The new Leica Laser Receiver RGR 200 enable the laser line to be located at a range of up to 80 metres.

The laser receiver may be hand-held, and used to locate the laser line on a wall, floor or ceiling, or it can be attached to a measuring staff to check the height of the laser across an open area such as a new concrete floor.

Additional information

Levelling Accuracy

± 0.2mm /m


up to 25m (Depending on ambient lighting conditions)

Range with RGR200 Receiver


Number of point lasers

4 (Plumb up, plumb down, level left 90°, level right 90°)

Number of line lasers

2 (horizontal, vertical)


Li-ion Rechareable / 3 x 1.5V Type AA

Rechargeable battery operating time

up to 28 hours

Environmental protection rating


Tripod Mount

1/4” (Camera) and 5/8” (standard survey tripod)


3 years
