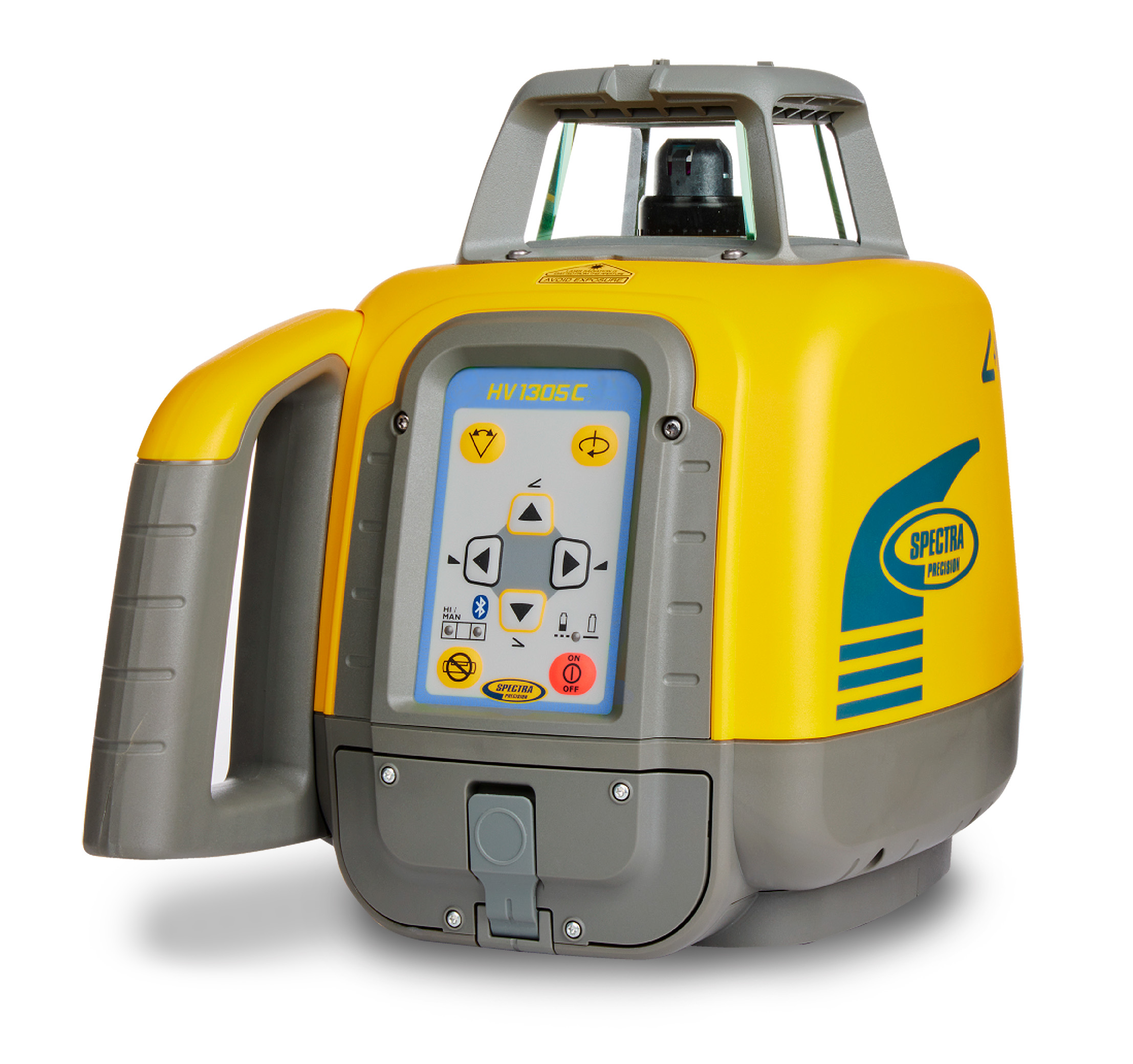

Spectra HV1305C Laser Level

Description

The Spectra HV1305C is a high quality and high accuracy multi-function laser level, which will fulfil almost any function required of a laser level on site.

The bright red-beam laser provides a highly visible line along the wall, ceiling or other structure onto which it is projected.

The laser level is fully automatically self-levelling and can be used in the horizontal or vertical plane.

A split 90° laser beam enables plumb-point transfer and 90° layout.

The extraordinarily rugged construction has a design expectation of being able to withstand a 1m drop onto concrete, or a standard height tripod tip-over.

For long range work of up to 1200m diameter outdoors, the Spectra HV1305C is used with the optional Spectra HL76 Laser Receiver.

Automatic slope matching, which is very useful for drainage work, is done with the Spectra HL760 Laser Receiver. The laser level scans up or down to find the laser receiver at its set height, using the radio link between the two, which enables the laser to be set to the required slope. This is much faster and more accurate than trying to manually set the laser to the slope.

The PlaneLok function available with the HL760 Receiver and Remote Control is used to lock the laser beam in alignment with the target point – especially useful for vertical cladding applications – to avoid the laser being disturbed out of alignment.

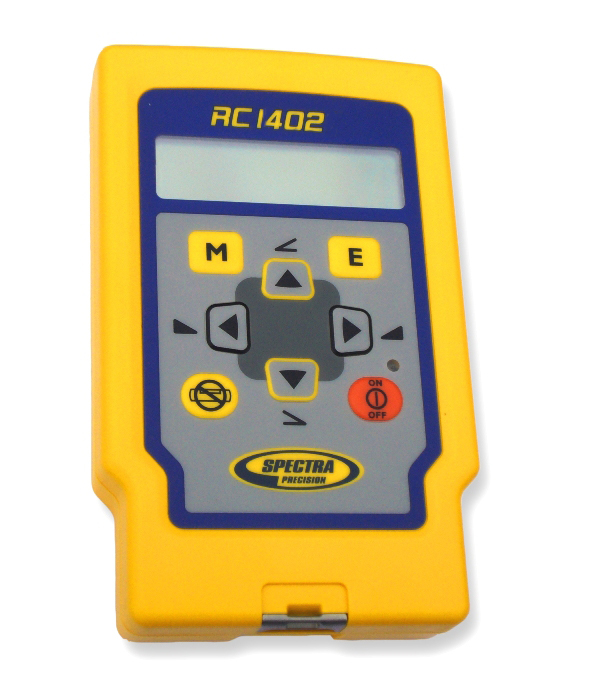

The free Spectra Remote Control app is available to enable a smartphone to be used, rather than using the optional Spectra RC1402 remote control.

Key Features of the Spectra HV1305C

• Superbright Class 3 red-beam laser for maximum visibility
• Automatic horizontal and vertical self-levelling
• Very high accuracy 1.5mm / 30m
• Working range with receiver: 1200m diameter
• Highly visible beam for indoor working
• 90° laser beams for setting out corners
• Long range (100m) radio remote control available
• 3 years warranty
